Skid for Pharmaceutical Gel

Gel is a common form for medicine and personal care products as it has the tendency to dissolve into the skin without leaving stickiness. When a cream is applied to skin, it leaves some residual.

Pharmaceutical industries realize these huge scopes and demands of the gels in their medicinal use and planning to launch various medicinal products in a gel variant.

INOXPA understands the requirement of our customers and offers a Table Blender Skid for the production of pharmaceutical gels.

Once such instance of the same are given:

Customer

One of the leading Italian pharmaceutical companies

Application

Preparation of pharmaceutical gels with active ingredients, viscosity 2000 cps.

Solultion

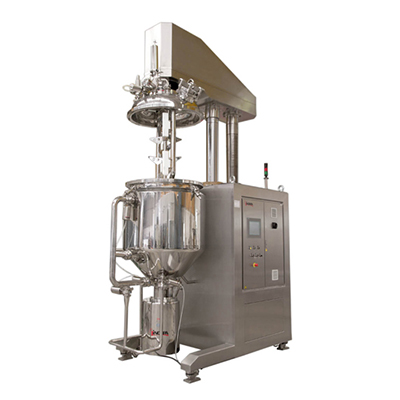

INOXPA has manufactured, for an Italian customer two skids with counter-rotating agitators.

The production volume of both skids is 500L. One skid is provided with a counter-rotating agitator and a mixer at the tank bottom with recirculation in the tank, and the other skid is provided with an anchor agitator and a cowler at the tank bottom.

As the skids are monoblock, all the required elements are built-in, for example, vacuum control with a pump, closed circuit for cooling/heating, resistance heating and cooling with a welded plate heat exchanger.

For maintenance tasks, the top of the tank is lifted by hydraulic cylinders.

There is also a loading system with weight control for vacuum loading of solids and addition of the purified water from the loop.

The skid is automated with a PLC and an operator panel with the function of recipe modification. The skid is also provided with frequency inverters for the agitation processes
