Case studies: Equipment for makeup production


Customer Customer

The customer is a Colombian cosmetics company, part of a multinational organisation with 50 years’ experience in the beauty industry. The company manufactures, transforms and markets goods for personal and family consumption.

Project Project

The customer needed some equipment to produce liquid-based makeup, with volumes ranging from 5 L to 100 L, under pressure and in a vacuum (-500 mbar / 200 mbar), and at room temperature. The products can reach viscosities of up 35,000 cP, meaning counter-rotating equipment is recommendable to ensure very viscous products mix efficiently.

Equipment for makeup production
  • Equipment for makeup production
  • Equipment for makeup production

They chose INOXPA because of the post-sales service we offer from Colombia.

  • Equipment for makeup production
  • Equipment for makeup production

They chose INOXPA because of the post-sales service we offer from Colombia.

Why INOXPA? Why INOXPA?

They chose us because of the post-sales service we offer from Colombia. We earned their satisfaction and trust when developing a COP (cleaning out of place) project.


INOXPA solution INOXPA solution

The project included 2 production reactors.

  • 1 x 30 L reactor to work with minimum volumes of at least 5 L
  • 1 x 100 L reactor to work with minimum volumes of at least 20 L
  • A centrifugal pump for a mobile CIP to connect to both reactors

Installation characteristics Installation characteristics

Both reactors included:

  • A hopper for adding solids
  • A tank bottom seat valve for discharge

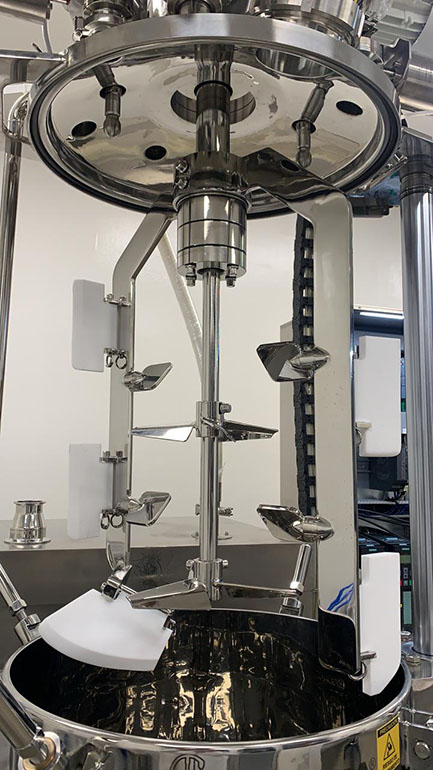

  • A counter-rotating agitator with scrapers
  • A vacuum system with a liquid ring pump
  • An electric control panel with a semi-automatic recipe system
  • A VPN system for remote connection
  • A hydraulic lifting system and a hydraulic power unit with dual manual control in accordance with machinery guidelines

Special features Special features

  • Efficient mixing with a counter-rotating agitator, producing the mix in the shortest possible time
  • The manufacturing process in a vacuum, removing any air, to make high quality products with a long shelf-life
  • Solids are added via vacuum aspiration from the tank bottom, making mixing easier
  • The equipment is easy to clean
  • The possibility of remote management via the VPN system connection
  • Enclosed stainless steel vacuum and hydraulic system on frame for use in a clean room
