INNOVA T Tank Bottom Double Seat Valve

INNOVA T Tank Bottom Double Seat Valve

Request information

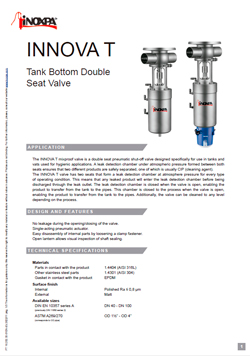

INNOVA T Tank Bottom Double Seat Valve

The INNOVA T mixproof valve is a double seat pneumatic shut-off valve designed specifically for use in tanks and vats used for hygienic applications. A leak detection chamber under atmospheric pressure formed between both seats ensures that two different products are safely separated, one of which is usually CIP (cleaning agent).

The INNOVA T valve has two seats that form a leak detection chamber at atmosphere pressure for every type of operating condition. This means that any leaked product will enter the leak detection chamber before being discharged through the leak outlet. The leak detection chamber is closed when the valve is open, enabling the product to transfer from the tank to the pipes. This chamber is closed to the process when the valve is open, enabling the product to transfer from the tank to the pipes. Additionally, the valve can be cleaned to any level depending on the process.

Request information

INNOVA T Tank Bottom Double Seat Valve

Design and features

No leakage during the opening/closing of the valve.
Single-acting pneumatic actuator.
Easy disassembly of internal parts by loosening a clamp fastener.
Open lantern allows visual inspection of shaft sealing.

Materials

Parts in contact with the product AISI 316L
Other stainless steel parts AISI 304
Gasket in contact with the product EPDM

Surface finish:
Internal Polished Ra ≤ 0,8 μm
External Matt

Available sizes:
DIN EN 10357 series A DN 40 - DN 100
(previously DIN 11850 series 2)

ASTM A269/270 OD 1½'' - OD 4''
(corresponds to OD pipe)

Connections: Weld

Options

Gaskets: FPM, HNBR.
Other connection types.
C-TOP+ control unit.
External position sensors.
Surface finish: Ra ≤ 0,5 μm.

Documents

Operating principle
Materials and Options

Parts in contact with the product AISI 316L
Other stainless steel parts AISI 304
Gasket in contact with the product EPDM

Surface finish:
Internal Polished Ra ≤ 0,8 μm
External Matt

Available sizes:
DIN EN 10357 series A DN 40 - DN 100
(previously DIN 11850 series 2)

ASTM A269/270 OD 1½'' - OD 4''
(corresponds to OD pipe)

Connections: Weld

Gaskets: FPM, HNBR.
Other connection types.
C-TOP+ control unit.
External position sensors.
Surface finish: Ra ≤ 0,5 μm.

Document № FT.INNOVA-T.1_ES
Title Válvula de Doble Asiento de Fondo de Tanque INNOVA T
File type .pdf
Summary La válvula mixproof INNOVA tipo T es una válvula neumática de doble asiento de cierre diseñada específicamente para ser instalada en fondos de tanque
