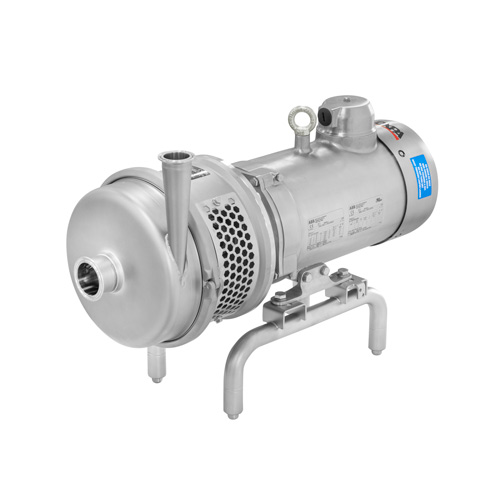

PROLAC HCP Hygienic Centrifugal Pump

PROLAC HCP Hygienic Centrifugal Pump

Request information

PROLAC HCP Hygienic Centrifugal Pump

Due to the choice of materials and its design, hygienic centrifugal pump PROLAC HCP is appropriate for applications requiring a high level of hygiene, gentle handling of the product and resistance to chemical agents. This centrifugal pump is particularly suitable as main process pump in the dairy, beverage, pharmaceutical and cosmetic industries.

The pump is authorized to carry 3-A symbol.
Note: Consult the options of the pumps authorized to carry 3-A symbol.

Request information

PROLAC HCP Hygienic Centrifugal Pump

Design and features

PROLAC HCP is a range of close-coupled centrifugal pumps with hygienic design, compact and highly efficient. It is made of a cold-formed stainless steel casing, impeller, mechanical seal, pump cover, lantern and shaft, connected to the motor shaft by mechanical compression.
The motor complies with the IEC standards, it is protected with a stainless steel shroud and provided with the height adjustable hygienic designed legs.

The pump is EHEDG certified, it is especially designed for CIP/SIP without disassembly.

The pump is authorized to carry 3-A symbol.
Note: Consult the options of the pumps authorized to carry 3-A symbol.

Mechanical seal

The PROLAC HCP centrifugal pump is provided with an internal single mechanical seal. The seal is balanced and has a hygienic design. As standard, the stationary part is in carbon and the rotary part is in silicon carbide, the gaskets are in EPDM. However, when required, other material can be used.
There is also an option of assembly of a double mechanical seal made of two identical seals. It helps to upgrade a pump with single seal to double seal and simplifies the mangement of necessary spare parts as the seal is the same.

Materials

Parts in contact with the product Stainless steel AISI 316L (1.4404)
Other steel parts Stainless steel AISI 304 (1.4301)
Gaskets in contact with the product EPDM

Mechanical seal:
Rotary part Silicon carbide (SiC)
Stationary part Carbon (C)
Gaskets EPDM

Options

Pump casing with drain port.
Pump casing with heating chamber.
Different types of connections.
Mechanical seal: SiC/SiC or TuC/SiC.
Double mechanical seal.
Gaskets: FPM or FFKM.
Motor with other voltages, frequencies, mechanical protections, efficiencies.
Trolley and/or control panel.
ATEX certification.

Options of the pumps authorized to carry 3-A symbol

Connections: CLAMP-OD, CLAMP-DIN, DIN11864.
Sealing: single mechanical seal.
Mechanical seal materials: C/SiC and SiC/SiC.
O-rings EPDM and FPM.
Drain: vertical Clamp-OD.

Documents

Operating principle
Materials and Options

Parts in contact with the product Stainless steel AISI 316L (1.4404)
Other steel parts Stainless steel AISI 304 (1.4301)
Gaskets in contact with the product EPDM

Mechanical seal:
Rotary part Silicon carbide (SiC)
Stationary part Carbon (C)
Gaskets EPDM

Pump casing with drain port.
Pump casing with heating chamber.
Different types of connections.
Mechanical seal: SiC/SiC or TuC/SiC.
Double mechanical seal.
Gaskets: FPM or FFKM.
Motor with other voltages, frequencies, mechanical protections, efficiencies.
Trolley and/or control panel.
ATEX certification.

Options of the pumps authorized to carry 3-A symbol

Connections: CLAMP-OD, CLAMP-DIN, DIN11864.
Sealing: single mechanical seal.
Mechanical seal materials: C/SiC and SiC/SiC.
O-rings EPDM and FPM.
Drain: vertical Clamp-OD.

Documents
Document № FT.HCP.2_ES
Title Bomba Centrífuga Prolac HCP
File type .pdf
Summary Por su selección de materiales y diseño la PROLAC HCP, certificada EHEDG, es adecuada en aplicaciones donde se requiera un alto nivel de higiene, un trato delicado del producto y resistencia química.
    Download
  • E-mail
Document № FT.HCP.2_EN
Title Centrifugal Pump Prolac HCP
File type .pdf
Summary Due to the choice of materials and its design, PROLAC HCP is appropriate for applications requiring a high level of hygiene, gentle handling of the product and resistance to chemical agents.
    Download
  • E-mail
Document № FT.HCP.2_FR
Title Pompe Centrifuge Prolac HCP
File type .pdf
Summary Par sa conception et ces choix de matériaux, la pompe PROLAC HCP est particulièrement adaptée au transfert des fluides qui requièrent un haut niveau d'hygiène
    Download
  • E-mail
Document № FT.HCP.2_IT
Title Pompa Centrifuga Prolac HCP
File type .pdf
Summary Per la selezione dei materiali e il disegno la PROLAC HCP è adeguata per applicazioni dove si richieda un alto livello di igiene, un trattamento delicato del prodotto e una resistenza chimica.
    Download
  • E-mail
Document № FT.HCP.2_PT
Title Bomba Centrífuga Prolac HCP
File type .pdf
    Download
  • E-mail
Document № FT.HCP.2_DE
Title Kreiselpumpe Prolac HCP
File type .pdf
    Download
  • E-mail
Document № FT.HCP.2_DA
Title Centrifugalpumpe Prolac HCP
File type .pdf
Summary På grund af valget af materialer og konstruktion, er PROLAC HCP velegnet til anvendelser, der kræver en høj grad af hygiejne, skånsom håndtering af produktet og høj virkningsgrad
    Download
  • E-mail
Document № FT.HCP.2_SW
Title Centrifugalpump Prolac HCP
File type .pdf
Summary Angående valet av material och pumpens design, så är PROLAC HCP utmärkt för applikationer som kräver en hög grad av hygien, varsam behandling av produkten och har motstånd mot kemiska reaktioner
    Download
  • E-mail
Document № FT.HCP.2_RU
Title Центробежный Насос PROLAC HCP
File type .pdf
Summary Принимая в внимание конструкцию и материалы исполнения, центробежный насос PROLAC HCP является оптимальным насосом для процессов, требующих высокого уровня гигиены, деликатного обращения с продуктами и стойкости к химическим реагентам.
    Download
  • E-mail
Document № FA HCP WFI.1_ES
Title Prolac HCP-WFI: Bombas centrífugas para aplicaciones farmacéuticas
File type .pdf
Summary Tomando como base las bombas centrífugas HCP se ha creado la opción HCP-WFI, que añade a la Prolac HCP las opciones más utilizadas en las aplicaciones farmacéuticas.
    Download
  • E-mail
Document № FA HCP WFI.1_EN
Title Prolac HCP-WFI: Centrifugal pumps for pharmaceutical applications
File type .pdf
Summary Using the HCP centrifugal pumps as a base, we have designed the HCP-WFI model, which adds the most popular options in pharmaceutical applications to the Prolac HCP pump.
    Download
  • E-mail
Document № FA HCP WFI.1_FR
Title Prolac HCP-WFI: Pompes centrifuges pour applications pharmaceutiques
File type .pdf
Summary La version HCP-WFI a été créée à partirdes pompes centrifuges HCP et apporte à la Prolac HCP-WFI, les options les plus demandées dans les applications pharmaceutiques.
    Download
  • E-mail
Document № FA HCP WFI.1_IT
Title Prolac HCP-WFI: Pompe centrifughe per applicazioni farmaceutiche
File type .pdf
Summary Partendo dalla base delle pompe centrifughe sanitarie Prolac HCP, è stata creata la variante HCP-WFI, che aggiunge alla pompa centrifuga Prolac HCP le opzioni più utilizzate nelle applicazioni farmaceutiche.
    Download
  • E-mail
Document № FA HCP WFI.1_RU
Title Prolac HCP-WFI: Центробежные насосы для фармацевтического применения
File type .pdf
Summary На основе центробежных насосов HCP разработана версия HCP-WFI c опциями, наиболее часто использующимися в фармацевтическом производстве.
    Download
  • E-mail
Document № 01.030.30.05ES
Title INSTRUCCIONES DE INSTALACIÓN, SERVICIO Y MANTENIMIENTO PROLAC HCP
File type .pdf
    Download
  • E-mail
Document № 01.030.30.05EN
Title INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS PROLAC HCP
File type .pdf
    Download
  • E-mail
Document № 01.030.30.05FR
Title INSTRUCTIONS D’INSTALLATION, DE SERVICE ET D’ENTRETIEN PROLAC HCP
File type .pdf
    Download
  • E-mail
Document № 01.030.30.05RU.pdf
Title ИНСТРУКЦИИ ПО УСТАНОВКЕ, ЭКСПЛУАТАЦИИ И ОБСЛУЖИВАНИЮ ГИГИЕНИЧЕСКИЙ ЦЕНТРОБЕЖНЫЙ НАСОС PROLAC HCP
File type .pdf
    Download
  • E-mail
Document № 01.030.12.0051
Title CURVAS CARACTERÍSTICAS. PERFORMANCE CURVES. PROLAC HCP
File type .pdf
Summary Área de selección / Performance chart
    Download
  • E-mail
