NBI Vertical Agitator

NBI Vertical Agitator

Request information

NBI Vertical Agitator

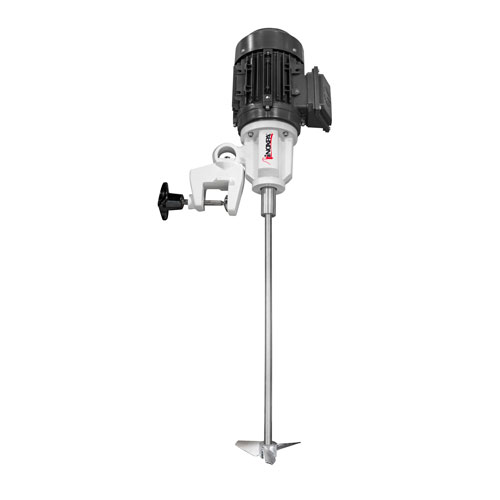

The NBI series agitators are medium speed vertical agitators with geared motor.

These agitators can be used in processes of mixing, dissolution, dispersion, and maintenance whenever a medium or mild agitation of medium or low viscosity products is required in the food processing, cosmetics, pharmaceutical or chemical industries.

Request information

NBI Vertical Agitator

Operating principle

The agitators are normally installed inside the tank either centrally with current deflectors, or offset to prevent the rotation of the stirred product.

The rotation of the propeller makes the fluid flow to the bottom and then up to the surface of the product along the walls of the tank. The effect is promoted if the bottom of the tank is curved.

Design and features

Vertical agitator.
Sealing: V-ring.
Propeller attached to shaft and the shaft attached to the geared motor by Allen studbolts.
Helical gear unit with reinforced bearings and food-grade oil.
Motors: IP 55, F-class insulation.
Maximum power 1,1 kW.
Marine propeller (Type 10).

Materials

Parts in contact with the product Stainless steel AISI 316L
V-ring NBR
Surface finish Ra ≤ 0,8 µm

Options

V-ring: FPM.
Welded propeller with Ra ≤ 0,5 μm surface finish.
Shaft and propeller lined with plastic material for use with corrosive products.
Drive shroud.
Motors with other protections.

Documents

Operating principle

The agitators are normally installed inside the tank either centrally with current deflectors, or offset to prevent the rotation of the stirred product.

The rotation of the propeller makes the fluid flow to the bottom and then up to the surface of the product along the walls of the tank. The effect is promoted if the bottom of the tank is curved.

Materials and Options

Parts in contact with the product Stainless steel AISI 316L
V-ring NBR
Surface finish Ra ≤ 0,8 µm

V-ring: FPM.
Welded propeller with Ra ≤ 0,5 μm surface finish.
Shaft and propeller lined with plastic material for use with corrosive products.
Drive shroud.
Motors with other protections.

Document № FT.NBI.2_ES
Title Agitador Vertical NBI
File type .pdf
Summary La gama de la serie NBI son agitadores verticales con motoreductor de velocidad media. Se pueden utilizar en procesos de mezcla, disolución, dispersión y mantenimiento tanto en la industria alimentaria, cosmética, farmacéutica y química dónde se requiera una agitación suave o media en productos de media y baja viscosidad.
    Download
  • E-mail
Document № FT.NBI.2_EN
Title Vertical Agitator NBI
File type .pdf
Summary The NBI series agitators are medium speed vertical agitators with geared motor. These agitators can be used in processes of mixing, dissolution, dispersion, and maintenance whenever a medium or mild agitation of medium or low viscosity products is required in the food processing, cosmetics, pharmaceutical or chemical industries.
    Download
  • E-mail
Document № FT.NBI.2_FR
Title Agitateur Vertical NBI
File type .pdf
Summary La gamme de la série NBI sont des agitateurs verticaux avec motoréducteur à vitesse moyenne. Ils peuvent être utilisés dans des procédés de mélange, de dissolution, de dispersion et d'homogénéisation dans l'industrie alimentaire, cosmétique, pharmaceutique et chimique, sur des produits de faible ou moyenne viscosité et qui requiert une agitation d'intensité douce à moyenne.
    Download
  • E-mail
Document № FT.NBI.2_IT
Title Agitatore Verticale NBI
File type .pdf
Summary La gamma della serie NBI sono agitatori verticali con motoriduttori a velocità media. Si possono utilizzare nei processi di miscelazione, dissoluzione, dispersione e mantenimento sianell'industria alimentare, cosmetica, farmaceutica e chimica dove si richieda una agitazione delicata o media nei prodotti di media e bassa viscosità.
    Download
  • E-mail
Document № FT.NBI.2_DE
Title Vertikalrührwerk NBI
File type .pdf
Summary Die Baureihe NBI umfasst Vertikalrührwerke mit einem Motor mit Untersetzungsgetriebe für mittlere Drehzahlbereiche
    Download
  • E-mail
Document № FT.NBI.2_RU
Title Вертикальная Мешалка NBI
File type .pdf
Summary Модель NBI представляет собой среднескоростную вертикальную мешалку с мотор-редуктором, предназначенную для процессов перемешивания, диспергирования и рециркуляции.
    Download
  • E-mail
Document № 20.047.30.01ES
Title INSTRUCCIONES DE INSTALACION, SERVICIO Y MANTENIMIENTO AGITADOR VERTICAL NBI
File type .pdf
Summary La gama de la serie NBI son agitadores verticales con un moto-reductor directo. La placa base que se acopla al depósito es de acero inoxidable con un sistema de obturación, v-ring.
    Download
  • E-mail
Document № 20.047.30.01EN
Title INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS NBI VERTICAL AGITATOR
File type .pdf
Summary The NBI series is a range of vertical agitators with direct-coupled speed reduction gearbox. The agitator mounting plate fixed to the tank is constructed from stainless steel and a v-ring shaft sealing system is used.
    Download
  • E-mail
Document № 20.047.30.01FR
Title INSTRUCTIONS D’INSTALLATION, DE SERVICE ET D’ENTRETIEN AGITATEUR VERTICAL NBI
File type .pdf
Summary Les agitateurs de la série NBI sont des agitateurs verticaux avec motoréducteur direct. La plaque base installée sur la cuve est en acier inoxydable avec garniture de chevrons comme système d’obturation.
    Download
  • E-mail
Document № 20.047.30.01RU
Title ИНСТРУКЦИИ ПО УСТАНОВКЕ, ЭКСПЛУАТАЦИИ И ОБСЛУЖИВАНИЮ - ВЕРТИКАЛЬНАЯ МЕШАЛКА NBI
File type .pdf
Summary Мешалки гаммы NBI представляют собой мешалки в санитарном исполнении, с валом, непосредственно соединенным с мотором-редуктором.
