8100X Multitooth Mixer

The 8100X series multitooth mixers are employed in the applications requiring high shear for achieving a thorough emulsification.
Until now mills and homogenisers have been used for production of high quality emulsions. The 8100X series high shear emulsifier achieves similar results and present a more hygienic solution at a lower price.
Among the products that can be prepared with this high shear emulsifier mixer there are mayonnaises, high quality body care products, pharmaceutical and veterinary solutions.

Request information

8100X Multitooth Mixer

Operating principle

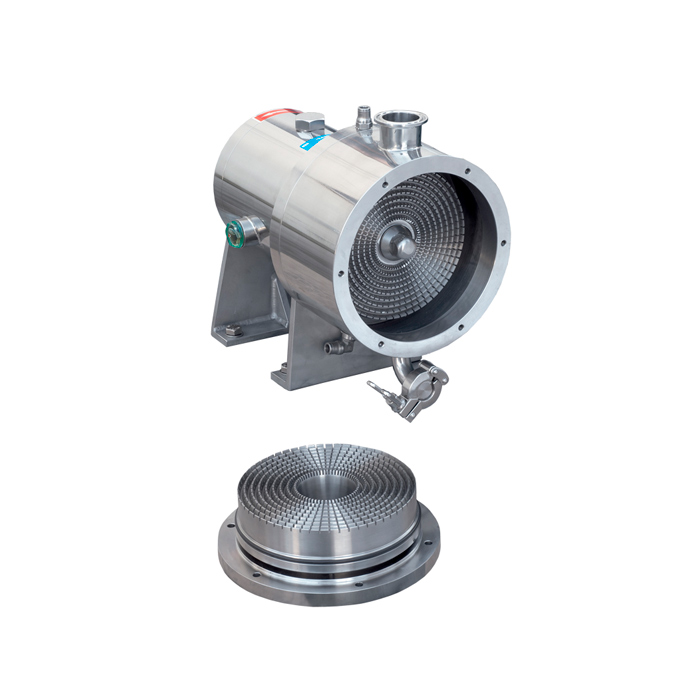

The traditional rotor/stator mixers produce point shear at the moment the rotor drives the product through the slots of the stator, and the 8100X series mixers are made up of many concentric rows of teeth.

The product enters through the centre of the mixer and moves outward through the radial channels between the rotor/stator teeth. Tolerances are very close, and the tip speed (up to 50 m/s) and the shear rates are very high.

Design and features

High shear. Particle size reduction to less than 10 micrometer.
Tip speed up to 50 m/s.
Sealing system: sanitary single cooled mechanical seal.
Adjustment of different tolerances between the rotor and stator.
CIP compatible design.
Standard connections: Clamp ISO-2852.
Assembly with pulleys and belts.
Clamp drain port.
Motors: IEC B3, IP 55, F class insulation, 3000 rpm.

Materials

Parts in contact with the media: AISI 316L
Other steel parts: AISI 304
Seal (standard): C / SiC
Gaskets (standard): EPDM
Surface finish: electropolished, Ra 0.8

Options

Double mechanical seal.
Other mechanical seal and gasket materials.
Connections: DIN 11851, SMS, RJT, …
Motors with other protections.
Speed adjustment: frequency converter or change of relation of pulleys.
Control panel.

Documents

Operating principle

The traditional rotor/stator mixers produce point shear at the moment the rotor drives the product through the slots of the stator, and the 8100X series mixers are made up of many concentric rows of teeth.

The product enters through the centre of the mixer and moves outward through the radial channels between the rotor/stator teeth. Tolerances are very close, and the tip speed (up to 50 m/s) and the shear rates are very high.

Materials and Options

Parts in contact with the media: AISI 316L
Other steel parts: AISI 304
Seal (standard): C / SiC
Gaskets (standard): EPDM
Surface finish: electropolished, Ra 0.8

Double mechanical seal.
Other mechanical seal and gasket materials.
Connections: DIN 11851, SMS, RJT, …
Motors with other protections.
Speed adjustment: frequency converter or change of relation of pulleys.
Control panel.

Document № FT.ME8100X.2_ES.pdf
Title Mixer Multidientes ME8100X
File type pdf
Summary La gama de mixers multidientes serie 8100X se utilizan en aplicaciones donde se requiera una gran capacidad de cizallamiento, para conseguir una buena emulsión.
    Download
  • E-mail
Document № FT.ME8100X.2_EN.pdf
Title High-shear "Multitooth" Mixer ME8100X
File type pdf
Summary The 8100X series multitooth mixers are employed in the applications requiring high shear for achieving a thorough emulsification.
    Download
  • E-mail
Document № FT.ME8100X.2_FR.pdf
Title Mixer Multidents ME8100X
File type pdf
Summary La gamme de mixers multidents série 8100X est utilisée dans les applications où une grande capacité de cisaillement est requise, afin d'obtenir une bonne émulsion.
    Download
  • E-mail
Document № FT.ME8100X.2_DE
Title Vielzahnmischer ME8100X
File type .pdf
Summary Die Vielzahnmischer der Baureihe 8100X kommen bei Anwendungen zum Einsatz, bei denen eine hohe Scherleistung gefordert ist, um eine gute Emulsion zu erreichen
    Download
  • E-mail
Document № FT.ME8100X.2_IT.pdf
Title Mixer Multidenti ME8100X
File type pdf
Summary La gamma dei mixer multidenti serie 8100X viene utilizzata nelle applicazioni dove sia richiesta una grande capacità di taglio del prodotto, per ottenere una buona emulsione.
    Download
  • E-mail
Document № FT.ME8100X.2_PT
Title Misturadora Multidentes M100X
File type .pdf
    Download
  • E-mail
Document № FT.ME8100X.2_RU.pdf
Title “Многозубчатый” Миксер Повышенной Резки ME8100X
File type pdf
Summary Многозубчатые миксеры повышенной резки серии 8100X используются для достижения устойчивых эмульсий и дисперсий.
    Download
  • E-mail
Document № FT.ME8100X.2_CN
Title 多齿混合器 8100X
File type .pdf
Summary 8100X系列多齿混合器主要应用于需要通过高剪切来达到整个的乳化的效果。 直到现在,研磨和均质使用作为生产高质量的乳化剂
    Download
  • E-mail
Document № MIME800X_ES
Title INSTRUCCIONES DE INSTALACIÓN, SERVICIO Y MANTENIMIENTO MIXER MULTIDIENTES SERIE 875X-892X
File type .pdf
    Download
  • E-mail
Document № MIME800X_EN
Title INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS MULTITOOTH MIXER 875X-892X SERIES
File type .pdf
    Download
  • E-mail
Document № MIME800X_IT
Title ISTRUZIONI D’INSTALLAZIONE USO E MANUTENZIONE MIXER MULTIDENTI SERIE 875X-892X
File type .pdf
    Download
  • E-mail
